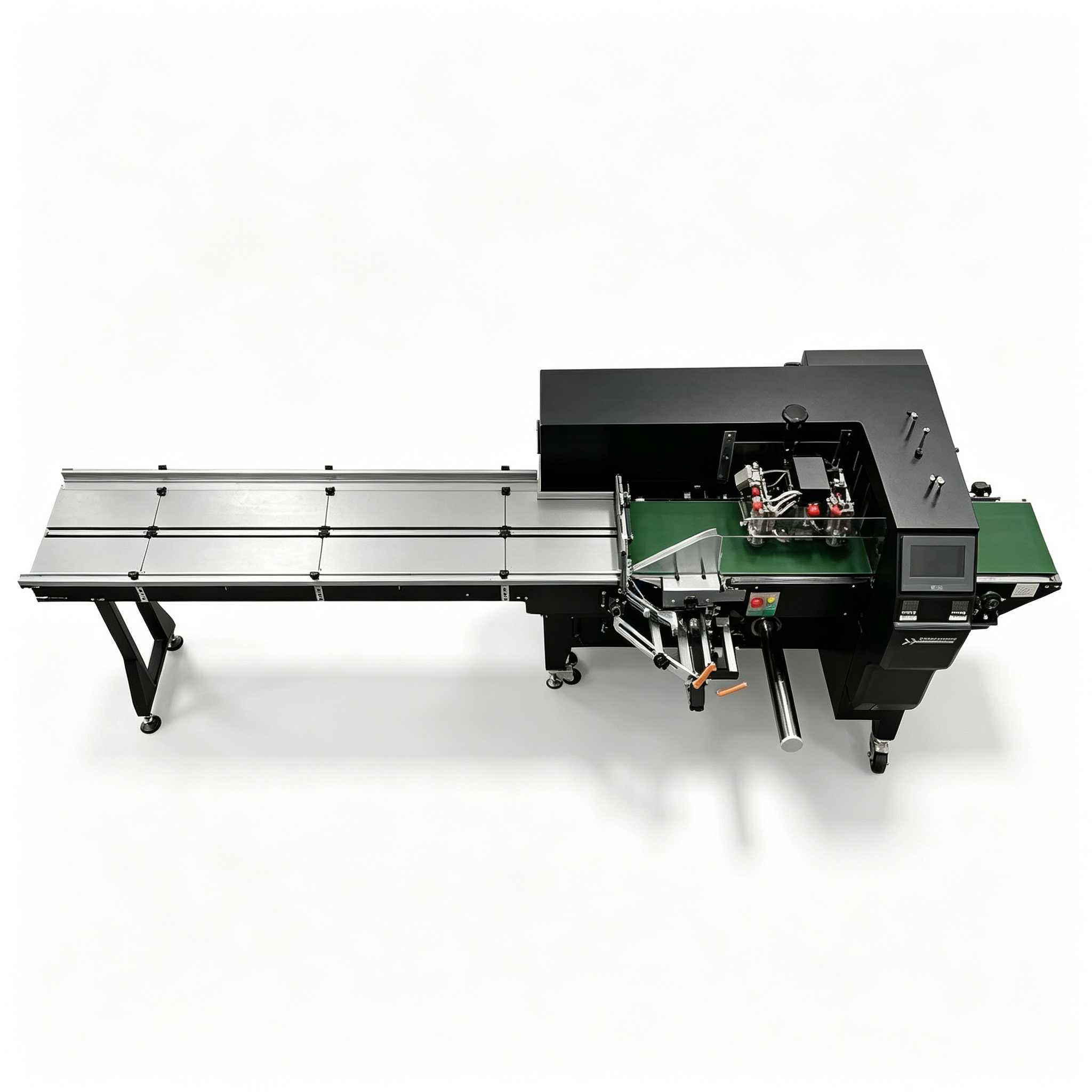

Automatic Pillow Packaging Machine Horizontal Flow Packing Machine

Name: Automatic Pillow Packaging Machine Horizontal Flow Packing Machine
Brand: ZHIROBO
Price: 1 USD

Model Number : ZRS-450XJ

Machine Dimensions : 3590*960*1080mm

MOQ : 1 set

Packing speed : 30-120 packs/Min

Control System : PLC with Touch Screen Interface

Supply Ability : 10 sets per month

Certification : VERIFICATION OF CONFORMITY

Weight : 340KG

Compatible Products : Wrench, screwdriver, switch, socket, etc.

Place of Origin : CHINA

Applicable Product Size : （W）150*（H）60MM

Packaging Details : Wooden Case

Price : Negotiable

Delivery Time : 15-30 working days

Packaging film : PP, CPP, PVC, PET, etc

Payment Terms : T/T

Packaging film width : 90-450mm

Brand Name : ZHIROBO

Type : Horizontal Flow Wrapper

Contact Now

High Cost Performance Automatic Pillow Packaging Machine With Color Mark Sensor

Main Technical Parameters

Model

ZRS-450XJ

Packaging Film Width

90-450mm

Packaging Width

150mm

Packaging Height

60mm

Packaging Speed

30-120 packs/Min

Voltage & Power

1P 220V 50HZ 2.8KW

Machine Size

3590*960*1080mm

Compatible Products

Wrench, screwdriver, switch, socket, etc.

Weight

340KG

Packaging Film Types

PP, CPP, PVC, PET, etc.

Equipment Configuration List

No.	Name	Brand	Technical Specs	Qty
1	Touch Screen	FLEXEM	7-inch Resistive Touch Panel	1
2	Servo Motor	WECON	750W/400W	3
3	Servo Driver	WECON		3
4	Air Circuit Breaker	Huanyu		2
5	Special Power Supply for Servo & Stepper Motor	Leadshine		1
6	Relay	Omron		2
7	Push Button Switch	Schneider		4
8	Temperature Controller	Sinny		2
9	Solid State Relay	Baideli (Wenzhou)		2
10	Terminal Block	TEND		50
11	Photoelectric Sensor	Controlymay		1
12	Power Switch	Changxin		1
13	Color Mark Sensor	CNBDL		1
14	Filter	TRANS		1
15	Sealing & Cutting Cutter		Double cutter sealing & cutting, Teflon coated	1
16	Film Guide Swing Lever Mechanism		Standard Type Film Swing Lever Assembly	1
17	Film Supporting Mechanism		Single support with automatic centering function	1
18	Feeding Mode		Belt feeding tail rack	1
19	Machine Main Body		Carbon steel frame with black finish	1
20	Cutter Safety Guard		Black ABS polymer material	1
21	Out-feed Conveyor Belt		Green PVC belt with hair brush cleaner	1
22	In-feed Unit		Chain transmission	Several
23	Product Feeding Unit		Chain transmission	Several
24	Tool Kit		Cutting blades, spanners and other maintenance tools	1 Set

Basic Applications

Suitable for packaging products in hardware, electrical appliances, switches, small commodities, daily chemicals, and other industries. Capable of wrapping items such as wrenches, screwdrivers, switches, sockets, and various small components.

Equipment Advantages

Triple-servo control system ensures clear operational status and stable performance
Intuitive HMI (Human-Machine Interface) enables simple operation with one-touch parameter storage and quick changeover
Automatically adjustable bag length with ultra-high precision and digital sealing/cutting position control
Optional knife seal chain drive for heavy-duty packaging applications
Changeover-free operation for different product sizes with auto in-feed and high-sensitivity sensor positioning
Accommodates a wider range of product dimensions
High-precision gearbox ensures stable operation, low noise, high efficiency, and extended service life

Equipment Layout

Automatic Pillow Packaging Machine Horizontal Flow Packing Machine
