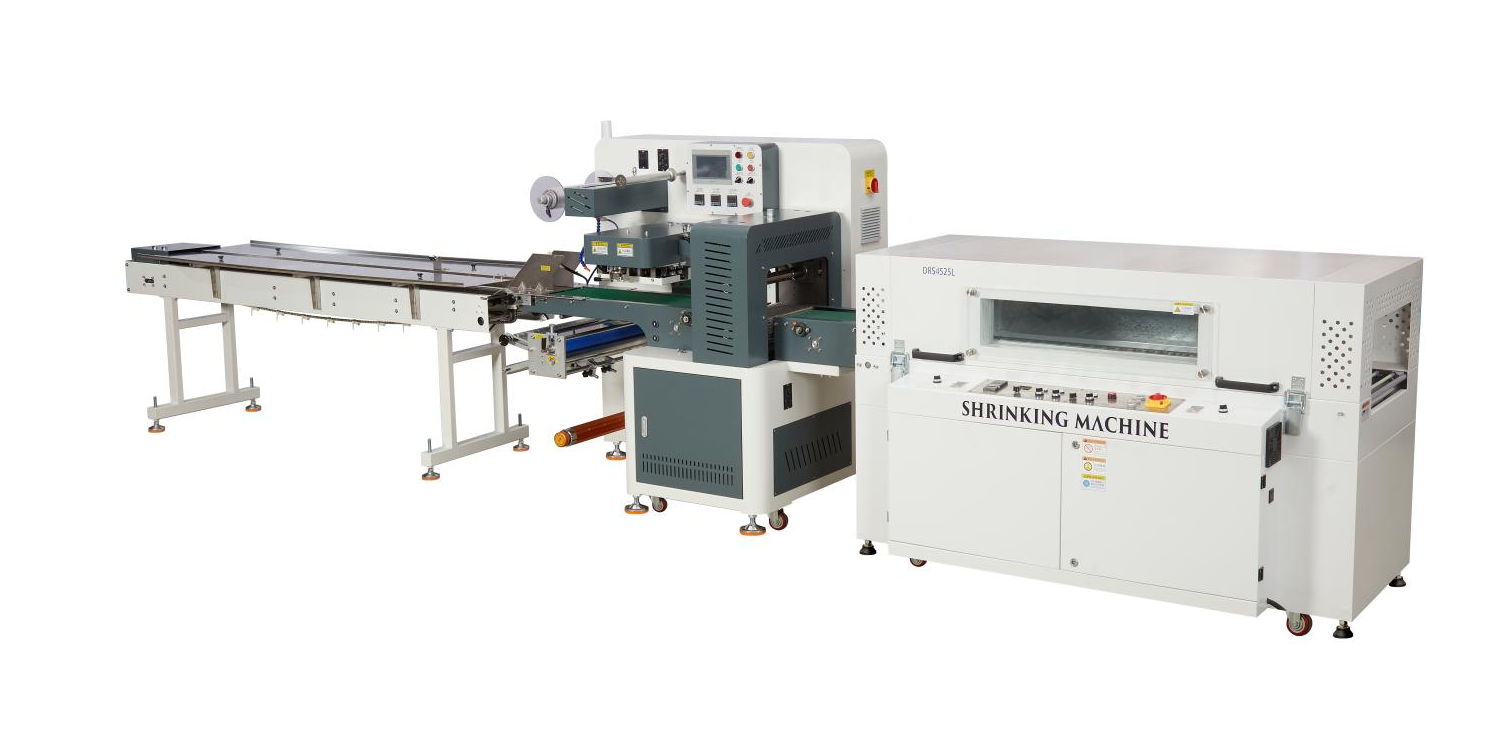

Fast Switch Horizontal Flow Wrapping Machine Stored Formulas Flow Wrap Packaging Machine

Condition : New

Certification : VERIFICATION OF CONFORMITY

Strapping speed : 2.18 sec/strap,< 3 seconds/strip,1.5sec/cycle,≤2.1S/way

MOQ : 1 set

Supply Ability : 10 sets per month

Packaging Details : Wooden Case

Type : Wrapping Machine,Other,Packing Machine

Place of Origin : CHINA

Packaging material : Plastic,Wood,Metal,Paper,handheld strapping machine 2

Application : Commodity,Food,Machinery & Hardware,Chemical,Medical

Delivery Time : 15-30 working days

Driven type : Electric,Pneumatic,Manual

Brand Name : ZHIROBO

Payment Terms : T/T

Model Number : ZRS-590X

Automatic grade : Automatic,Semi-Automatic

Price : Negotiable

Contact Now

POF Special Store 49 Sets Product Formulas Fast Format Switch Flow Wrapping Machine
Application Overview

Designed for high-efficiency heat shrink packaging across a wide range of industries, including adhesive products, daily chemicals, gifts, toys, medical supplies, and food processing. This versatile packaging machine is ideal for wrapping individual products such as masking film, adhesive tape, barbecue aluminum foil, milk tea products, plastic wrap, garbage bags, instant noodles, shower gel, and other consumer goods.

Key Features
  • Three-Servo Control System
    Equipped with a high-precision three-servo drive system, enabling instant bag length adjustment and accurate cutting for improved packaging efficiency.
  • Continuous Rotary Sealing & Cutting
    Features a rotary sealing and cutting mechanism for smooth, continuous operation and stable high-speed packaging performance.
  • Automatic Material Detection & Standby Function
    Automatically stops when film runs out and enters standby mode when no packaging material is detected, reducing waste and improving safety.
  • High-Performance Anti-Stick Cutter
    Uses high-speed die steel cutting blades with Teflon surface treatment to prevent material adhesion and extend cutter service life.
  • Intelligent Touch Screen Control
    Equipped with a user-friendly color touchscreen interface for quick parameter setting, operation monitoring, and convenient adjustment.
  • Easy Specification Adjustment
    Lead screw adjustment design allows fast and precise changes between different product sizes.
  • Reliable Transmission System
    Simplified mechanical transmission structure enhances stability, reduces maintenance requirements, and improves long-term reliability.
  • Anti-Miscut Protection System
    Intelligent protection function automatically retracts the sealing jaw when abnormal conditions are detected, preventing product damage.
  • Automatic Waste Film Removal
    Torque-controlled waste collection system driven by a stepper motor ensures smooth and consistent waste film removal.
Technical Specifications
Parameter ZRS-590X KS-4525
Max. Film Width <590mm
Packing Size Φ(40-220)*H(5-90)mm 450(W)*200(H)mm
Packaging Speed 50-100 packs/Min 0-18/min
Voltage and Power 1P220V 50/60HZ/5.4KW AC380V/12KW
Machine Size 4750*1120*1610MM
Heating Tunnel Size 1500*450*250MM
Packing Kind Masking film, milk tea, food packaging PVC, POF, PE
Film Type POF
Weight 650KG 150kg
Configuration Details
Component ZRS-590X KS-4525
Touch Screen WECON
AC Contactor TIANGAO
Servo Motor/Driver/Controller WECON
Circulation Fan Surin
Gear Reducer HASHIMAI
Stepper Motor Instar
Air Circuit Breaker MOFIIFR
Photoelectric Switch DCF
Speed Governor DingJianpai
Magnetic Particle Clutch YOSEEN
Switching Power Supply Ming wei
Contactor/Relay Schneider
Push Button Switch Kndele TIANGAO
Temperature Controller Caoren Shanghai yatai
Linear Guides HIWIN
Motor Sanly MaiLi
Terminal Block Tend
Three-Color Signal Tower Light TʌYB
Solid State Relay FTEK
Proximity Switch CNTD
Bearing NSK HRB
Sealing and Cutting Knife DC53 die steel surface Teflon treatment
Production Line SUN304 stainless steel
Device Body Steel structure baking powder
Working Desk SUN304 stainless steel

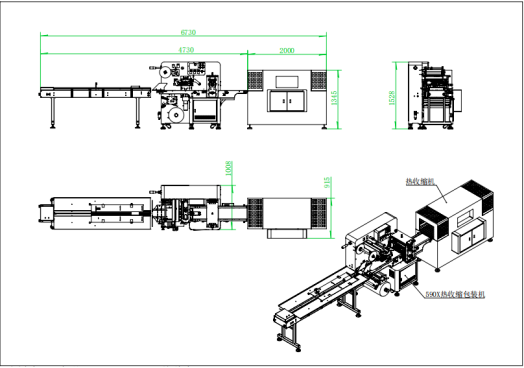

Equipment Layout
Fast Switch Horizontal Flow Wrapping Machine Stored Formulas Flow Wrap Packaging Machine Fast Switch Horizontal Flow Wrapping Machine Stored Formulas Flow Wrap Packaging Machine Fast Switch Horizontal Flow Wrapping Machine Stored Formulas Flow Wrap Packaging Machine
