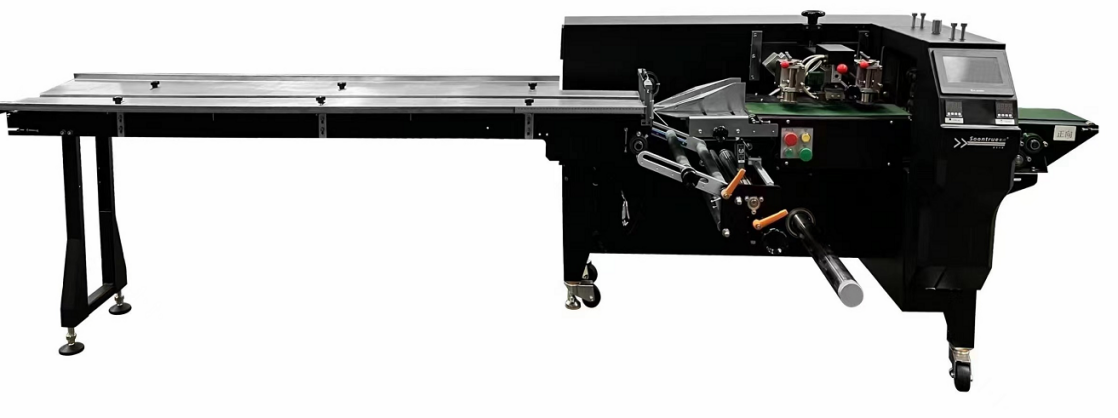

PLC Controlled Horizontal Flow Wrapping Machine Precision Gearbox Horizontal Flow Wrapper

Name: PLC Controlled Horizontal Flow Wrapping Machine Precision Gearbox Horizontal Flow Wrapper
Brand: ZHIROBO
Price: 1 USD

Model Number : ZRS-350XJ

Packaging Details : Wooden Case

Payment Terms : T/T

Packing speed : 30-120 packs/Min

Place of Origin : CHINA

Control System : PLC with Touch Screen Interface

MOQ : 1 set

Machine Dimensions : 3590*960*1080mm

Price : Negotiable

Weight : 340KG

Kind of package : Wrench, screwdriver, switch, socket, etc

Packaging film : PP, CPP, PVC, PET, etc

Delivery Time : 15-30 working days

Supply Ability : 10 sets per month

Certification : VERIFICATION OF CONFORMITY

Applicable Product Size : （W）120*（H）50MM

Packaging film width : 90-350mm

Type : Horizontal Flow Wrapper

Brand Name : ZHIROBO

Contact Now

Economical Horizontal Flow Wrapping Machine with High-Precision Gearbox

Main Technical Parameters

Model	ZRS-350XJ
Packaging film width	90-350mm
Packaging width	120mm
Packaging height	50mm
Packing speed	30-120 packs/Min
Voltage and power	1P 220V 50HZ 2.8KW
Machine size	35909601080mm
Kind of package	Wrench, screwdriver, switch, socket, etc
Weight	340KG
Packaging film	PP, CPP, PVC, PET, etc

Equipment Configuration List

No.	Name	Brand	Technical Specs	Qty
1	Touch Screen	FLEXEM	7-inch Resistive Touch Panel	1
2	Servo Motor	WECON	750W/400W	3
3	Servo Driver	WECON		3
4	Air Circuit Breaker	Huanyu		2
5	Special Power Supply for Servo & Stepper Motor	Leadshine		1
6	Relay	Omron		2
7	Push Button Switch	Schneider		4
8	Temperature Controller	Sinny		2
9	Solid State Relay	Baideli (Wenzhou)		2
10	Terminal Block	TEND		50
11	Photoelectric Sensor	Controlymay		1
12	Power Switch	Changxin		1
13	Color Mark Sensor	CNBDL		1
14	Filter	TRANS		1
15	Sealing & Cutting Cutter		Double cutter sealing & cutting, Teflon coated	1
16	Film Guide Swing Lever Mechanism		Standard Type Film Swing Lever Assembly	1
17	Film Supporting Mechanism		Single support with automatic centering function	1
18	Feeding Mode		Belt feeding tail rack	1
19	Machine Main Body		Carbon steel frame with black finish	1
20	Cutter Safety Guard		Black ABS polymer material	1
21	Out-feed Conveyor Belt		Green PVC belt with hair brush cleaner	1
22	In-feed Unit		Chain transmission	Several
23	Product Feeding Unit		Chain transmission	Several
24	Tool Kit		Cutting blades, spanners and other maintenance tools	1 Set

Basic Use

Suitable for packaging products in hardware, electrical appliances, switches, small commodities, daily chemicals, and other industries. It can wrap items such as wrenches, screwdrivers, switches, sockets, and more.

Equipment Advantages

The triple-servo control system ensures clear operational status and stable performance. The intuitive HMI (Human-Machine Interface) enables simple operation, and product parameters and recipes can be stored with one touch for quick changeover.
The bag length is automatically adjustable without manual intervention, offering ultra-high precision. The sealing and cutting positions can be digitally entered for precise operation, ensuring no material is cut into. The stop position and printing position are freely programmable.
Optional knife seal chain drive for heavy-duty packaging. Changeover-free operation for different product sizes. Auto in-feed with high-sensitivity sensor for precise positioning — simple and labor-saving.
Can accommodate a wider range of products.
The machine is equipped with a high-precision gearbox, which ensures more stable operation, low noise, high efficiency, and a longer service life.

Equipment Layout

PLC Controlled Horizontal Flow Wrapping Machine Precision Gearbox Horizontal Flow Wrapper
