Six Axis Automatic Cutter Machine PLC Touch Screen Masking Tape Slitting Machine Full Tension Control

Model Number : ZRT-1300-G6

Maximum cutting diameter : 180mm

Delivery Time : 15-30 working days

Machine size : L3200mm*W2000mm*H2000mm

Certification : VERIFICATION OF CONFORMITY

Net Weight : 3.5T

Spindle servo motor : 5000W HCFA

Place of Origin : CHINA

Power supply : 380V(Customizable 220V) 50/60HZ/15KW

Price : Negotiable

Payment Terms : T/T

Brand Name : ZHIROBO

Packaging Details : Wooden Case

Cutting width : 0.5-1300mm

MOQ : 1 set

Contact Now

Six-axis Automatic Cutting Machine with PLC Touch Screen and Fully-automatic Tension Control
Product Overview

This advanced six-axis automatic cutting machine is designed for precision slitting of various materials including electrician's tape, electronic film, grid tape, PE, TPU, PET, kraft paper, paper tape, BOPP, adhesive tape, acrylic, double-sided tape, and masking tape.

Main Technical Parameters
Parameter Specification
Name/Model ZRT-1300-G6
Paper Core Customized (25/32/38/50/76=6 strips)
Cutting Width 0.5-1300mm
Maximum Cutting Diameter 180mm (varies with material thickness)
Maximum Shearing Blade Diameter 200mm
Dual-screen Control 15 inches + 7 inches
Power Supply 380V (Customizable 220V) 50/60HZ/15KW
Air Pressure 5KG
Machine Size L3200mm × W2000mm × H2000mm
Net Weight 3.5T
Configuration Parameters
Component Specification
Model ZRT-1300-G6
Main Touch Screen 15 HCFA
Auxiliary Touch Screen 7 inches HCFA
Rack Wall Panel Thickness: 40mm
Motion Controller HCFA
Spindle Servo Motor 5000W HCFA
Spindle Servo Driver 5000W HCFA
Circular Knife Servo Motor 3000W HCFA
Circular Knife Drive 3000W HCFA
Lateral Servo Motor 1500W HCFA
Lateral Servo Driver 1500W HCFA
Feed Servo Motor 1500W HCFA
Feed Servo Drive 1500W HCFA
Angle Positioning Servo 400W HCFA
Angle Positioning Servo Drive 400W HCFA
Rolling Servo 1000W HCFA
Rolling Servo Driver 1000W HCFA
Water Pump 60W
Planetary Reducer Smetre
Slicer JU JIU
Air Switch Chint
Switching Power Supply Mingwei
Photoelectric Sensor BOJKE
Proximity Switch Yangming
AC Contactor Schneider
Relay IDEA
Button Switch Schneider
Three-color Warning Light TAYB
Illumination LED
Feed Screw HIWIN 3210
Horizontal Moving Screw Rod HIWIN 3210
Adjustable Angle Screw Rod HIWIN 1510
Cutting-in Guide Rail HIWIN30
Lateral Guide Rail HIWIN30
Operation Box Guide Rail HIWIN15
Solenoid Valve Asicko
Air Cylinder AIRTAC
Linear Rail HIWIN
Magnet Switch AIRTAC
Spindle 3 inches (6 pieces) DC53
Bearing NSK
Fuselage Imported paint finish
Round Knife 3 pieces (size determined by material) - maximum 200mm
Work-box 1 set
Dial Gauge 1 set
The Tool Post 1 PCS
PE Pipe 6 items
Key Equipment Advantages
HECO motion control system with 12 cutting modes for different product widths and three feed speeds
5000W servo-controlled main shaft and 3300W servo-controlled circular cutter with immediate stop safety feature
NSK 3210 lead screw and 30 guide rails for horizontal movement with ±0.02mm positional accuracy
Upper silver 3210 screw and 30 guide rails for feed mechanism ensuring strength and precision
400W servo-controlled swing angle with range of +9.5° to -9.5°
60W water pump cooling system with precise ball valve for silent operation
QBQ treatment for enhanced hardness, wear resistance, and corrosion resistance
Dual-screen operation with 15-inch main display and 7-inch auxiliary screen
Comprehensive machine lighting system
Stainless steel dry-wet separation knife box design
Stainless steel drainage system to prevent silicone oil spillage
1000W servo motor reversal structure with zero-error flipping
Simultaneous three-axis segmentation for improved efficiency
Pre-assembled tool rest compatible with products having main shaft core below 25mm

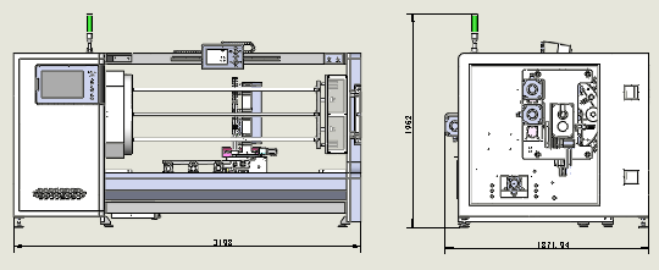

Equipment Layout
Six Axis Automatic Cutter Machine PLC Touch Screen Masking Tape Slitting Machine Full Tension Control Six Axis Automatic Cutter Machine PLC Touch Screen Masking Tape Slitting Machine Full Tension Control
