OEM Flat Surface Labeling Machine High Effiency Flat Bottle Labelling Machine Multi Angle Adjustable

Name: OEM Flat Surface Labeling Machine High Effiency Flat Bottle Labelling Machine Multi Angle Adjustable
Brand: ZHIROBO
Price: 1 USD

Model Number : ZRW-113

Applicable Dimensions : 10-22mm

Price : Negotiable

Packaging Details : Wooden Case

Payment Terms : T/T

Structure : Reasonable Structure

Grade : Automatic

Suit Bottle Size : Can be customized

Delivery Time : 15-30 working days

Advantage : High Effiency

Place of Origin : CHINA

Service : OEM Service

Certification : VERIFICATION OF CONFORMITY

Brand Name : ZHIROBO

Name : Flat Surface Labeling Machine

MOQ : 1 set

Contact Now

Multi-Angle Adjustable Label Head Fully Automatic Top Flat Surface Labeling Machine

Technical Specifications

Parameter	Value
Model	ZRW-113
Product Application Range	400(L) * 200(W) * 200(H) mm (customizable based on samples)
Label Specifications	Length: 10–350 mm Width: 10–150 mm
Labeling Accuracy	±1 mm (excluding product and label tolerances)
Packaging Speed	0–80 pcs/min (depending on product and label size)
Label Core ID	76 mm
Max Label Roll OD	≤300 mm
Power Supply	AC 200–240 V, 50–60 Hz, 200 W
Air Pressure	0.5 MPa (5 kg/cm²)
Machine Dimensions	2000(L) * 1100(W) * 1500(H) mm
Net Weight	150 kg

Standard Configuration

Component	Description
Model	ZRW-113
PLC	Programmable Logic Controller
Label Sensor	SICK
Product Sensor	PLC-controlled
Label Belt Motor	RUIDA with inverter control
Label Traction Motor	LEADSHINE
HMI Touchscreen	WECON
Conveyor Motor	RUIDA with inverter control
Frame	Stainless steel & high-grade aluminum alloy

Product Application

This automatic flat labeling machine is designed for applying self-adhesive labels on the top surface of various products, including boxes, cartons, books, folders, and other flat items.

With a simple modification to the labeling head, it can also handle uneven surfaces, making it ideal for large-format products and oversized flat workpieces.

Key Advantages

User-friendly intelligent touch screen, supported by high-performance PLC and intelligent control system for stable operation.
Equipped with brush or sponge pressing assembly to ensure smooth, wrinkle-free labeling and consistent adhesion.
Adjustable mounting bracket design allows flexible setting of optimal labeling angles for different product shapes.
High-precision imported sensing system ensures accurate label detection and stable positioning.

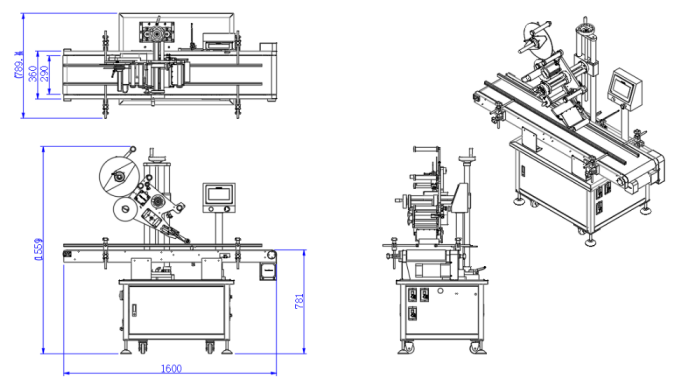

Equipment Layout

OEM Flat Surface Labeling Machine High Effiency Flat Bottle Labelling Machine Multi Angle Adjustable
