Dual Air Circulation Shrink Wrapping Machine Visible Window Shrink Tunnel Packing Machine

Brand Name : ZHIROBO

Price : Negotiable

Model : DRS-5025POF

Payment Terms : T/T

Overall Size : 1800*975*1100mm

Certification : VERIFICATION OF CONFORMITY

Load Capacity : 10KG

Place of Origin : CHINA

Packing Speed : 20-40bag/min

Packaging Details : Wooden Case

Delivery Time : 15-30 working days

Heating Tunnel Size : 1500*470*250mm

Packing Film : POF PVC

Weight : 250KG

Model Number : DRS-5025POF

Type : Wrapping Machine

MOQ : 1 set

Contact Now

Dual Air Circulation Heat Shrink Tunnel with visible window

Main Technical Parameters
Model DRS-5025POF
Packing Film POF PVC
Load Capacity 10KG
Packing Speed 20-40bag/min
Voltage Power 380V/13KW
Heating Tunnel Size 1500*470*250mm
Overall Size 1800*975*1100mm
Weight 250KG
Configuration Parameters
Name Model Brand Qty Remarks
Speed Control Motor 200W AC Variable Speed Motor 迈力 1
Fan 1.1kW Three phase Asynchronous Fan 云驰 2 2800rpm
Heating tube 1.8kW Metal Ring Heating Element
6
Frequency Inverter
科索 2
Circuit Breaker C63 正泰 1
Phase Sequence Protector XJ3-G 正泰 1
Solid-type Voltage Regulator SSR40VA 源煌科技 3
AC Contactor CJX2-3210 正泰 1
AC Contactor CJX2-2510 正泰 1
Intermediate Relay JZX-22F 正泰 1
Thermal Overload Relay JR36-20 正泰 1
Changeover Switch DS11-63A 德力西 1
Temperature Controller
超能 1
Push-Button Switch LA38ZHD 合力电器 3
Voltmeter DA16-22VM 上海廿开 3
Basic Use

It is suitable for heat shrink packaging of adhesive products, daily chemicals, gifts, toys, medical supplies, food, cosmetics and other industries.

Equipment Advantages
  • Our equipment utilizes stainless steel heating tubes (heating elements) to achieve prolonged service life.
  • The thermal insulation layer of the heating system of the intelligent visible variable-frequency heat shrink tunnel is made of high-temperature resistant rock wool, which keeps the surface temperature low during operation and reduces heat loss.
  • The air circulation duct system is specially designed to ensure uniform heating of products. Equipped with two high-power imported air circulation motors, it delivers large and even air volume inside the shrink tunnel with adjustable wind speed.
  • The outer panels of the heat shrink tunnel are bent from ordinary carbon steel sheets with plastic-sprayed surface treatment, while the inner panels are hydraulically processed galvanized sheets.

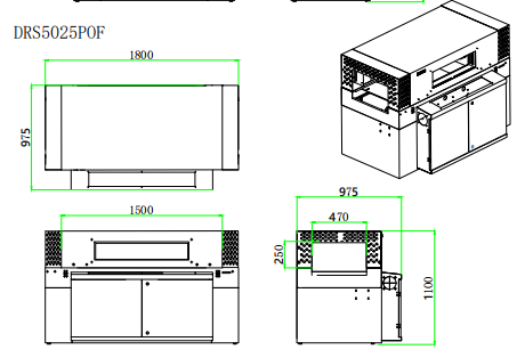

Equipment Layout
Dual Air Circulation Shrink Wrapping Machine Visible Window Shrink Tunnel Packing Machine

Dual Air Circulation Shrink Wrapping Machine Visible Window Shrink Tunnel Packing Machine
