Split Conveyor Tape Bundling Machine Connectable With Slitter Unmanned Line
Key Performance Highlights
- Dual-Channel High Efficiency: Automated two-lane feeding designed for synchronous packaging, ideal for side-marked or double-printed tape rolls.
- Instant Impulse Cold-Cutting (500mm Width): Zero preheating required. Saves energy while delivering clean, burr-free sealing edges across PVC and POF films.
- Rapid Tool-Less Changeover: Integrated lead-screw handwheel allows operators to adjust product width and diameter in seconds.
- Seamless Line Integration: Connects directly downstream of fully automatic or manual slitting machines for complete unmanned workflow.
- Versatile Recipe Memory: Smart HMI allows operators to toggle between 8, 10, and 12-roll packaging configurations with a single tap.
- Heavy-Duty Structural Design: Modular steel frame architecture ensures zero vibration, higher accuracy, and easy long-distance transport.
Differentiated Equipment Advantages
Dual-Lane Synchronous Feeding & Side-Mark Alignment
The ZRB-500T features an advanced two-channel sorting mechanism capable of feeding two streams of cylindrical products simultaneously. It automatically aligns tapes with double-sided brand markings, ensuring clean presentation before wrapping.
Energy-Saving 500mm Impulse Cold-Sealing Technology
Unlike traditional hot-knife systems that consume continuous electricity and require long warmup delays, our impulse cold-cutter fires heat only during the seal cycle. This eliminates toxic film fumes, reduces power bills, and delivers an ultra-smooth 500mm seal line.
Precision Handwheel Width & Diameter Adjustment
Engineered with a patented lead-screw adjust system, switching between different roll dimensions (, width ) takes less than two minutes. No complex modular teardown is required—simply turn the calibrated handwheel.
Unmanned Slitting-to-Packaging Workflow
Eliminate manual loading bottlenecks. The ZRB-500T links directly to your existing tape slitting machines (both manual and fully automatic), taking freshly slit rolls, organizing them into lanes, and wrapping them without human intervention.
Zero-Deviation Film Storage & Fixed Position Discharge
Tension-Controlled Film Feed: A specialized film storage buffer prevents tracking errors, film snapping, or wrinkle distortion during continuous operations.
Fixed-Point Indexing Discharge: Ejects finished bundles into precise positions to prevent loose or unraveling shrink film during downstream transit.
Technical Specifications Matrix
Operating Parameters
| Parameter |
Specification |
| Model |
ZRB-500T |
| Applicable Product Size |
Diameter: | Width: $10&text{–}25&text{ mm |
| Packaging Capacity |
10 Packs / min (Dual-lane optimized) |
| Compatible Packaging Films |
PVC, POF Heat Shrinkable Film |
| Power Supply & Rating |
Single-Phase AC 200–240V, 50/60 Hz, 400 W |
| Required Air Pressure |
() |
| Machine Footprint (L×W×H) |
� |
| Net Weight |
� |
更多选项
Premium Hardware & Electrical Components
| Component Category |
Brand / Supplier Specification |
| Touch Screen (HMI) |
Mcgstpc Industrial Color Display |
| Programmable Logic Controller (PLC) |
CHSJL Control System |
| Pneumatic Cylinders |
CNTUOPU Precision Cylinders |
| Solenoid Valves |
STNC Pneumatics |
| Relays |
OMRON |
| AC Contactors |
Schneider Electric |
| Air Circuit Breaker |
Chint Electric |
| Switching Power Supply |
Mean Well (Mingwei) |
| Photoelectric Sensors |
Taiwan Yangming |
| Main Drive Motor |
Sanly Motor Drive |
| Precision Bearings |
NSK / HRB Heavy-Duty Bearings |
| Control Switches |
Kndele Industrial Buttons |
Target Industry Applications
- Electrical Insulation Tapes: PVC electrical rolls, high-voltage rubber tapes, and wiring harness rolls.
- Industrial & Specialty Tapes: Duct tapes, masking tape rolls, double-sided tissue tapes, and packaging tape rings.
- Cylindrical Retail Items: Small round tin boxes, cylindrical plastic cases, and round craft supplies.

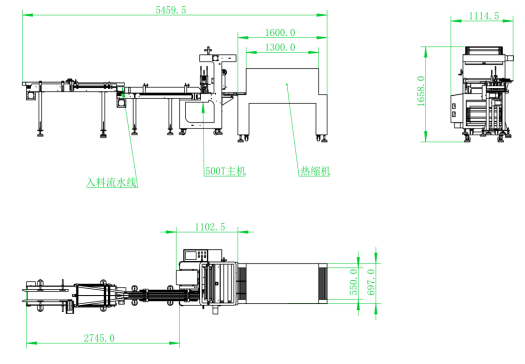

Equipment Layout:
